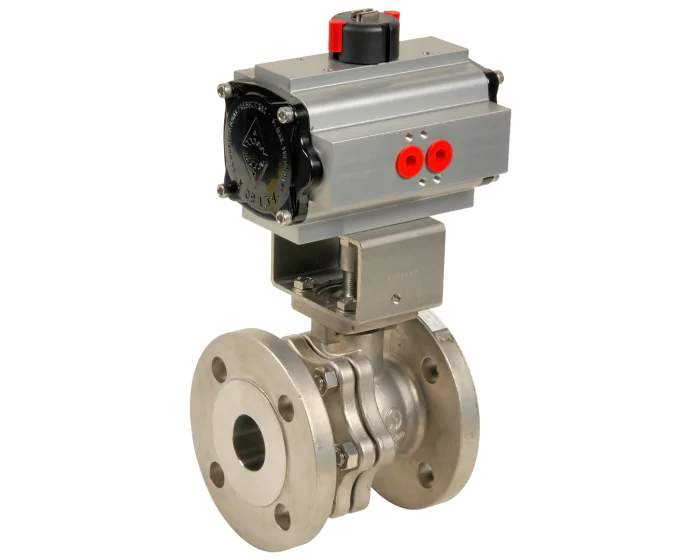

The 757 series stainless steel ball valve has a CF8M body and ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | TFM 1600 |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | Petrochemicals |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting | 274422015100 | S1002981 |
€330.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return | 274422016101 | S1002982 |
€362.10
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting | 274423015100 | S1002983 |
€336.60
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Spring return | 274423016101 | S1002984 |
€367.20
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting | 274424015100 | S1002985 |
€374.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return | 274424016102 | S1002986 |
€459.96
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Double acting | 274426015101 | S1002987 |
€534.69
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return | 274426016102 | S1002988 |
€581.49
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting | 274427015102 | S1002989 |
€681.83
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return | 274427016104 | S1002990 |
€781.59
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting | 274428015103 | S1002991 |
€904.79
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return | 274428016105 | S1002992 |
€1,106.51
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Double acting | 274429015103 | S1002993 |
€1,125.04
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return | 274429016105 | S1002994 |
€1,314.66
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Double acting | 274430015104 | S1002995 |
€1,681.89
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' Spring return | 274430016106 | S1002996 |
€1,975.11
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Double acting | 274432015106 | S1002997 |
€3,109.63
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return | 274432016107 | S1002998 |
€3,368.86
(excl. btw)
|
add to cart |
